DM Series
Rental LED Screen Solutions
Elevate Your Events with Seamless Brilliance
Built for the Rigors of Rental
Rain, dust, or accidental bumps
– we’ve got you covered.
GOB Coating Technology

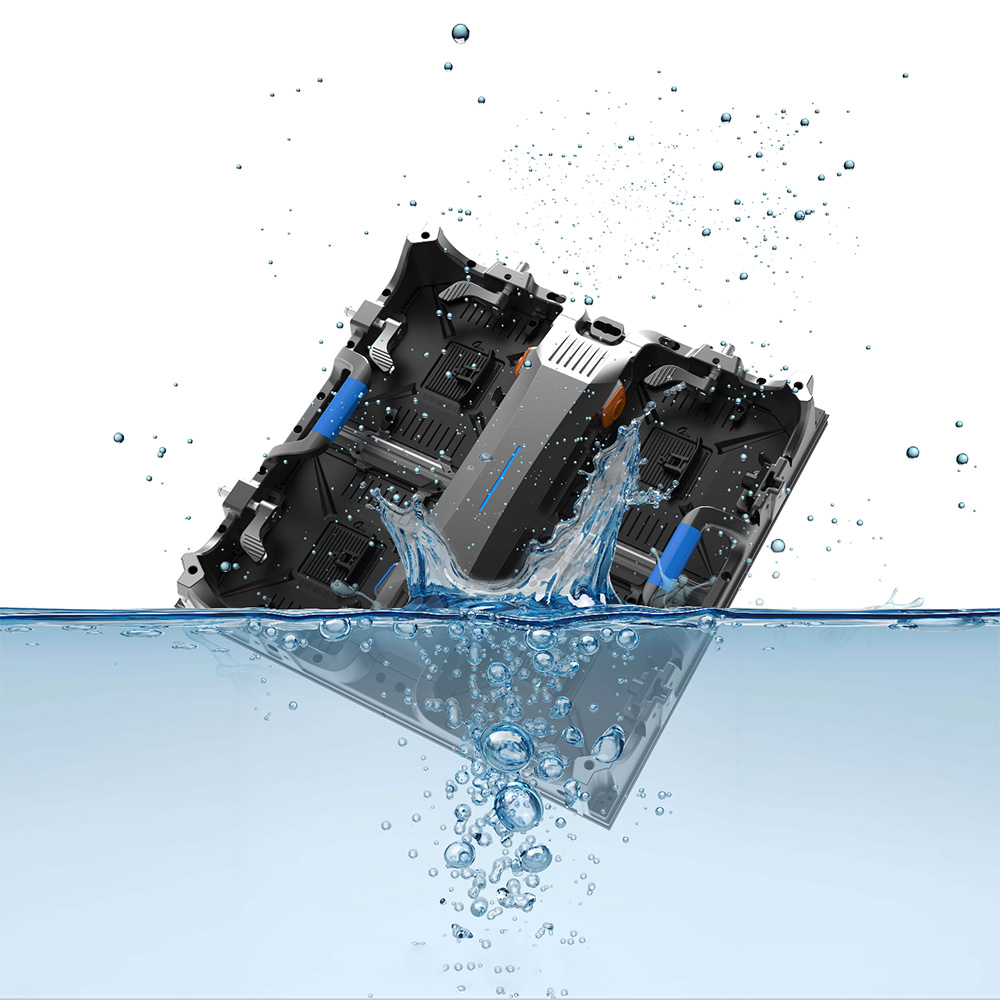

Waterproof Feature
The high-quality coating “Ten Prevention” technology has stable and reliable performance.

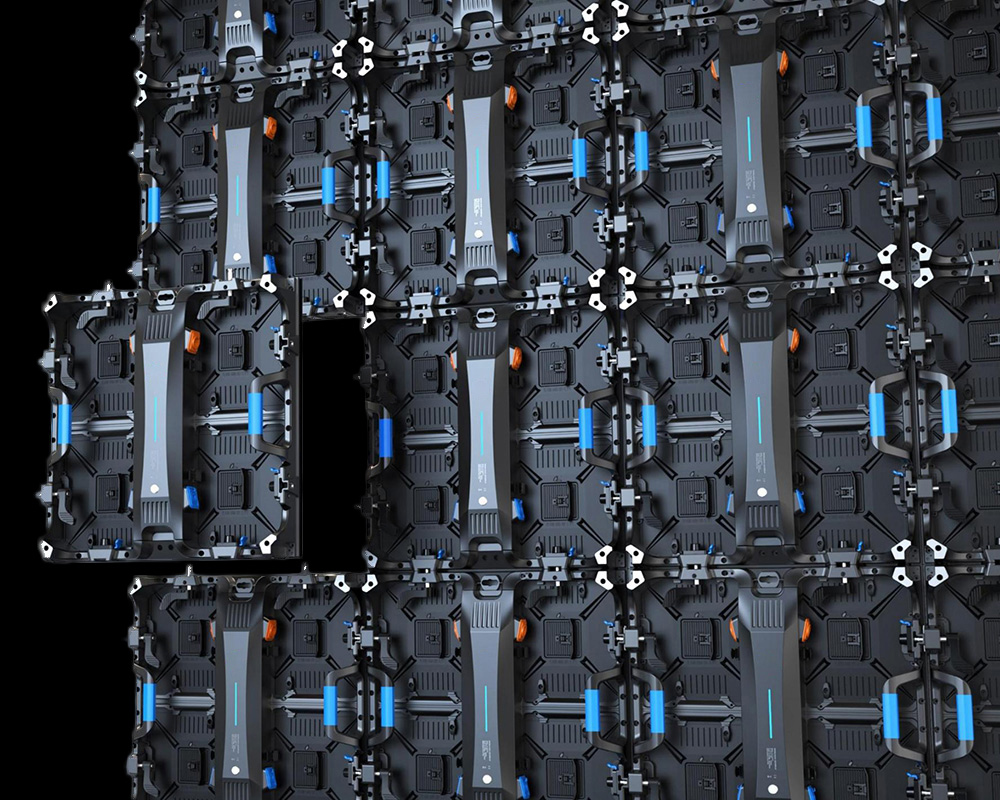

Fast installation
Lightweight yet rugged frames built for fast deployment and transport

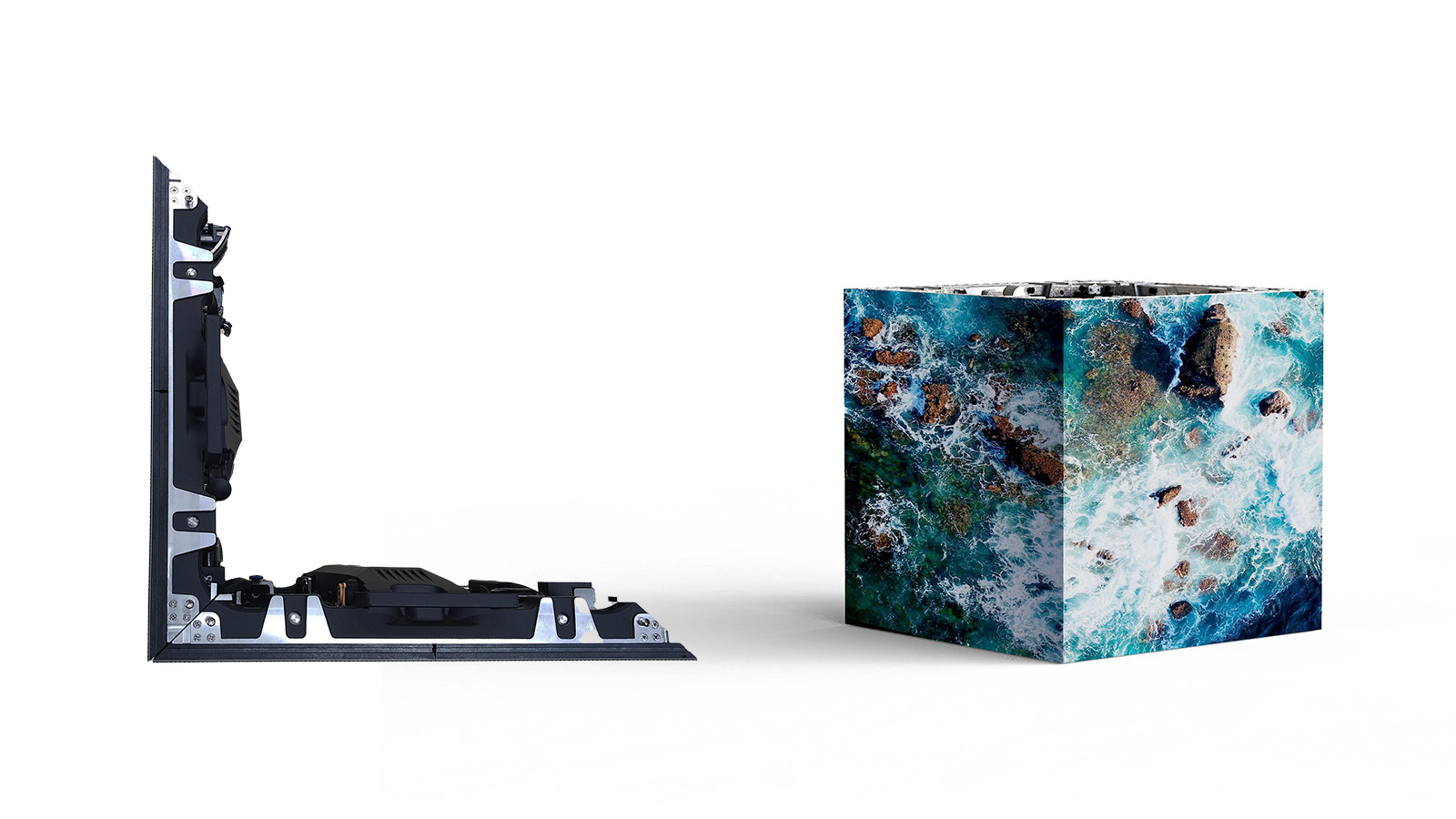

45-degree chamfered edges
Enable seamless right-angle alignment

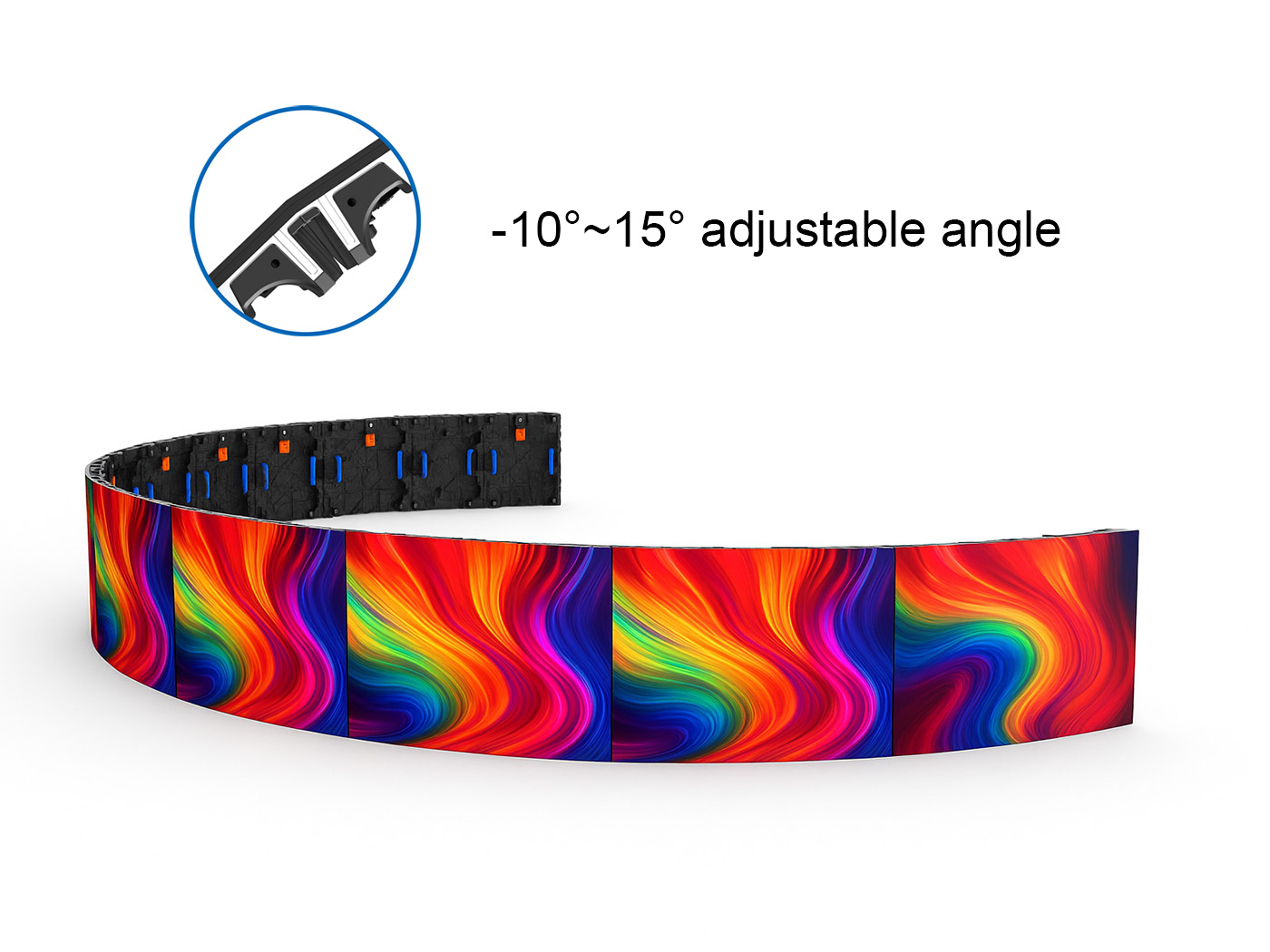

10° outer / 15° inner Arc Adjustability
For Curved Screen applications
Parameters
| Items | Soft Connection | ||||
| Indoor | Outdoor | Indoor | Outdoor | Indoor | |
| Match Pixel Pitch | 2.6 | 3.9 | 2.9 | 3.9 | 4.8 |
| Module Size (mm) | 250×250 | 250×250 | 250×250 | 250×250 | 250×250 |
| Module Resolution | 96×96 | 64×64 | 84×84 | 64×64 | 52×52 |
| Full Screen Size (mm) | 500×500 / 500×1000 | 500×500 / 500×1000 | 500×500 / 500×1000 | 500×500 / 500×1000 | 500×500 / 500×1000 |
| Cabinet Resolution | 192×192 | 128×128 | 168×168 | 128×128 | 104×104 |
| Cabinet Power Consumption (W) | ≤100 | ≤88 | ≤124 | ≤156 | ≤168 |
| Chip Type | PWM-SS | PWM-SS | PWM-SS | PWM-SS | PWM-SS |
| Supply Voltage (V) | 4.2V / 4.5V | 4.2V / 4.5V | 4.2V / 4.5V | 4.2V / 4.5V | 4.2V / 4.5V |
| Refresh Rate (Hz) | 6000 | 7680 | 6000 | 7680 | 7680 |
| Brightness (Cd/m²) | ≥1000 | ≥5000 | ≥1000 | ≥5000 | ≥5000 |
| Grayscale (Bit) | 12 ~ 14 | 14 ~ 16 | 14 ~ 16 | 14 ~ 16 | 14 ~ 16 |
