DW Series

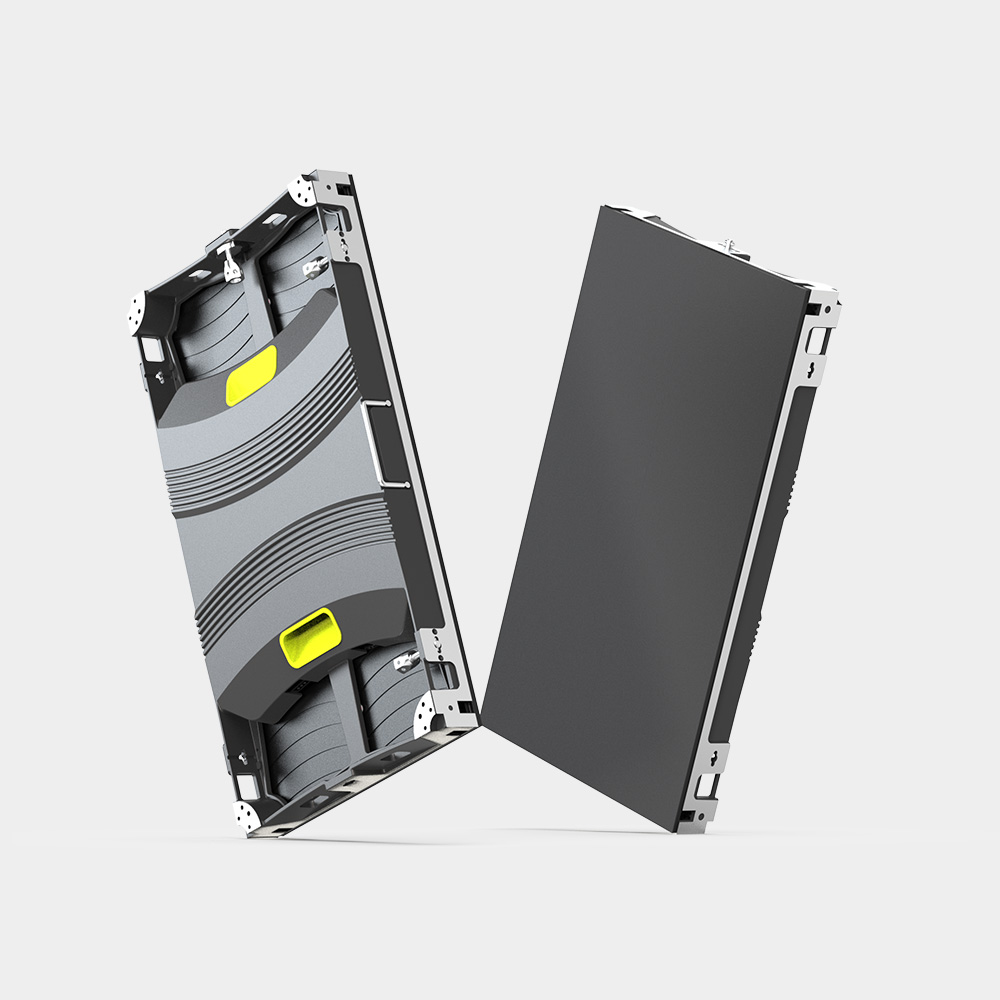

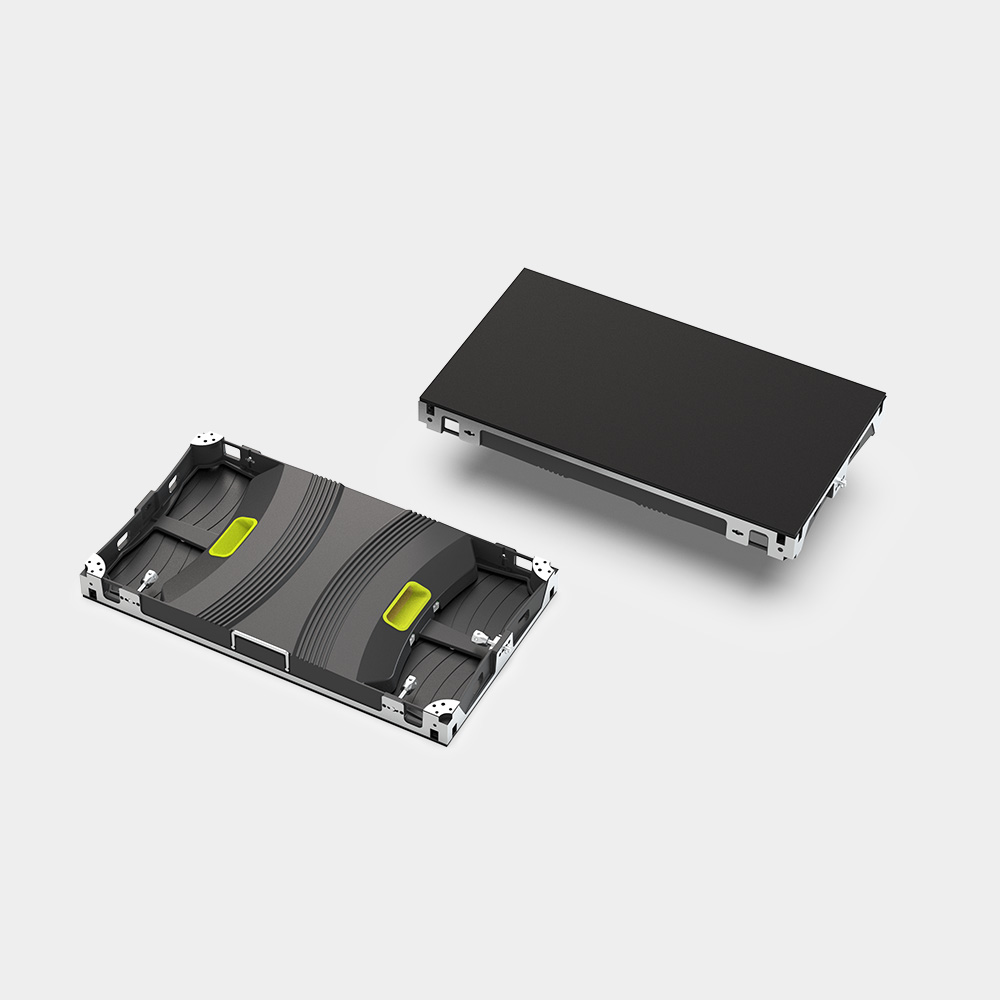

It’s a 16:9 cabinet for indoor fixed microLED display solution.
Experience the pinnacle of LED display technology with our new 27.5-inch diagonal small-pitch product line. Crafted with the finest manufacturing and process capabilities globally recognized in the LED display industry. 9thPanel is redefining what it means to have a small-pitch display.
Parameters
| Product Parameter | DW1.2 Pro | DW1.5 Pro | DW1.9 Pro | DW2.3 Pro | |||||||||
| Module Parameter | Pixel Pitch（mm） | 1.27 | 1.58 | 1.90 | 2.38 | ||||||||
| Pixel Density（dots/㎡） | 619414 | 396800 | 275556 | 176356 | |||||||||
| Module Resolution（dots） | 240*135 | 192*108 | 160*90 | 128*72 | |||||||||
| Module Size（mm） | 304.8*171.45 | 304.8*171.45 | 304.8*171.45 | 304.8*171.45 | |||||||||
| Module Weight（kg） | 0.57 | 0.57 | 0.57 | 0.45 | |||||||||
| Cabinet Parameter | Cabinet Size (l*w*h) | 610*343*59.5 (Thickness Includes Modules, Cabinets, And Connecting Pieces) | |||||||||||
| Cabinet Size（inch） | 27.5″ | ||||||||||||
| Cabinet Resolution（dots） | 480*270 | 384*216 | 320*180 | 256*144 | |||||||||
| Cabinet Weight（kg） | 5.98 | 5.98 | 5.98 | 5.5 | |||||||||
| Screen Parameter | Pixel Structure | 1R1G1B | |||||||||||
| Display Color (100 million) | 43980 | ||||||||||||
| Driving IC | PWM-SS | ||||||||||||
| Brightness（cd/㎡） | 650 | ||||||||||||
| Horizontal Viewing Angle（°） | 140 | ||||||||||||
| Vertical Viewing Angle（°） | 130 | ||||||||||||
| Brightness Uniformity | ＞95% | ||||||||||||
| Gray Level（bits） | 14 | ||||||||||||
| Maximum Power Consumption（w/㎡） | ≤380 | ≤304 | ≤285 | ≤230 | |||||||||
| Average Power Consumption（w/㎡） | ≤127 | ≤101 | ≤95 | ≤77 | |||||||||
| Supply Voltage（v） | Compatible With 4.2 & 4.5 | ||||||||||||
| Refresh Rate（hz） | ≥6000Hz | ||||||||||||
| Frame Change Frequency（hz） | ≥60 | ||||||||||||
