Description
QM series

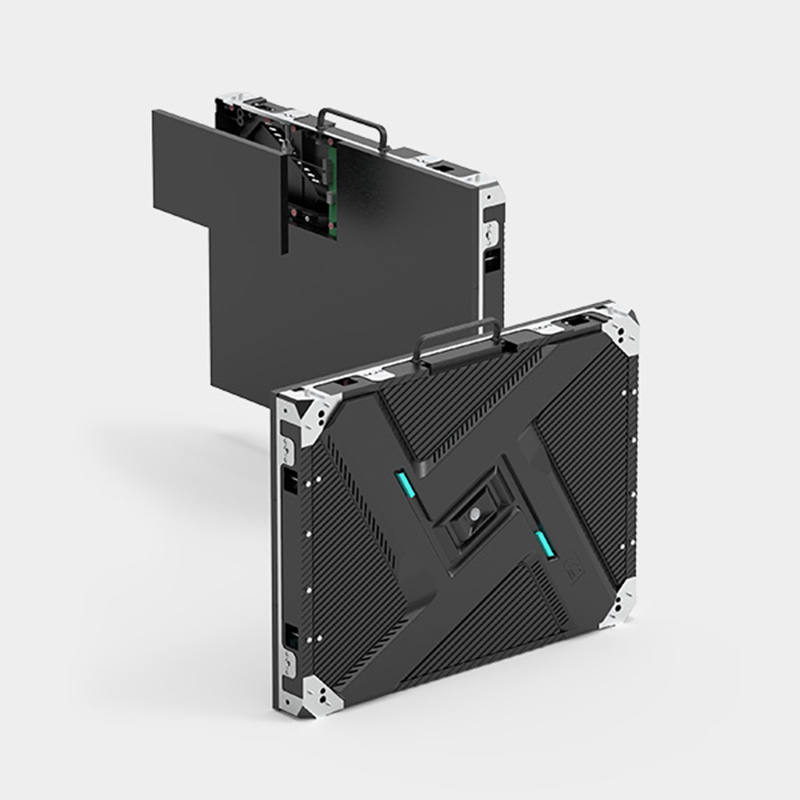

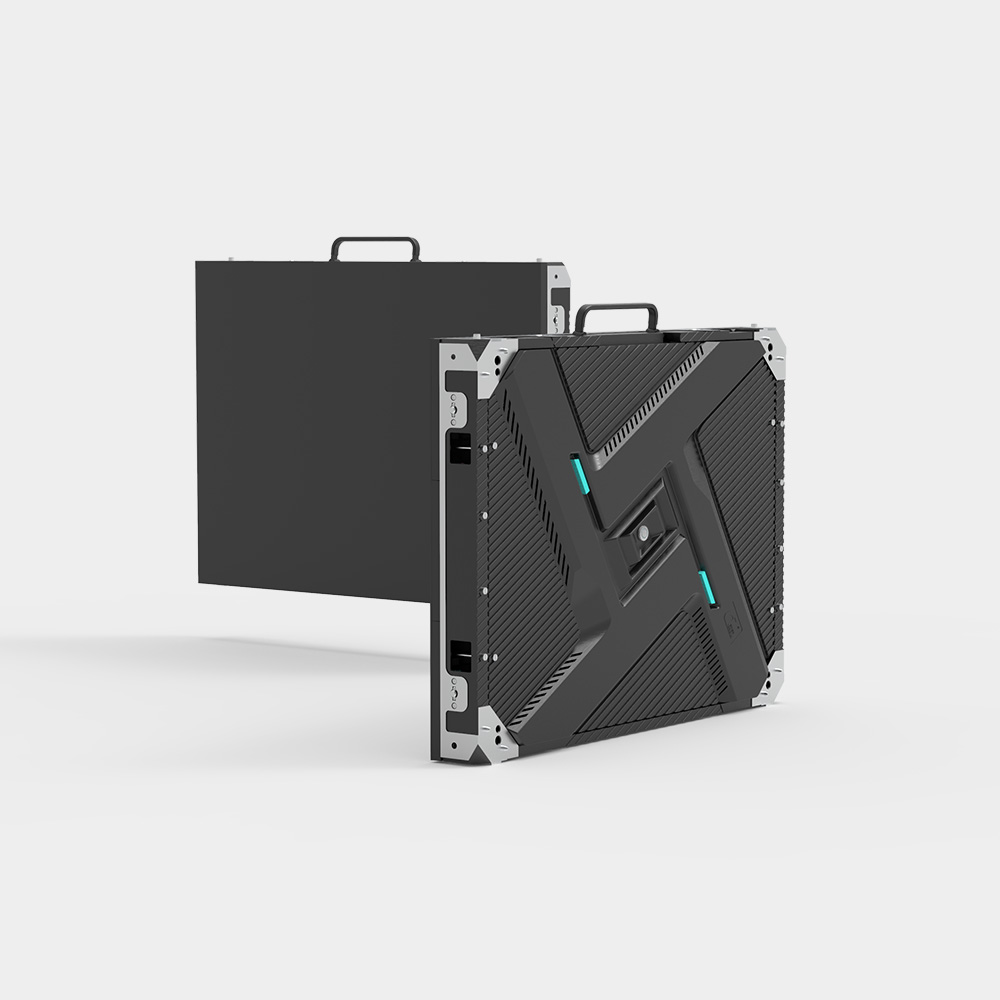

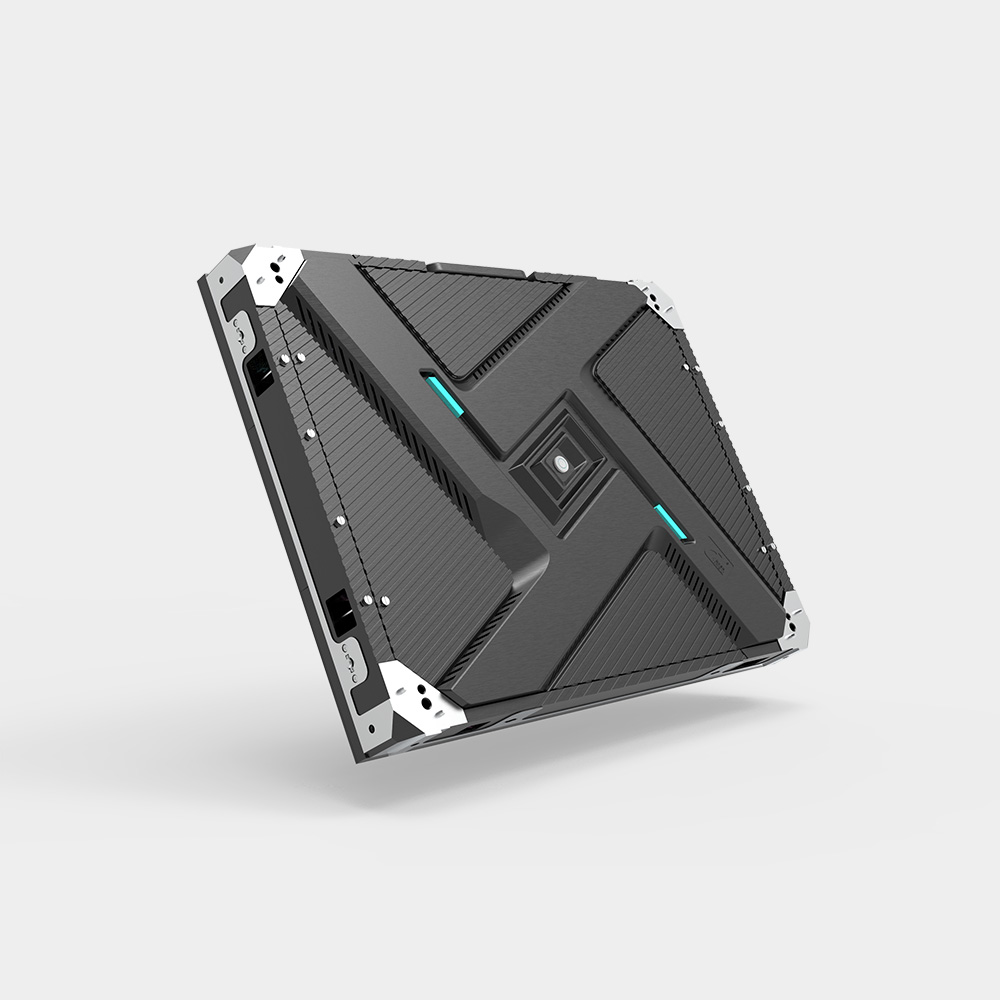

The QM series is a newly launched 640*480 aluminum alloy box that is light in weight, extremely thin, multi-purpose in one box, high-precision, and capable of front and rear maintenance. It is suitable for various indoor full-color 320*160 size module to meet the application needs of various indoor places.
Parameters
| Items | QM-Pro | |||||||
| Match Pixel Pitch Module Size (mm) | 0.9 | 1.2 | 1.5 | 1.8 | 2 | 2.5 | 3 | 4 |
| Scan | 1/45 | 1/32 | 1/52 | 1/43 | 1/40 | 1/32 | 1/26 | 1/20 |
| Module Resolution (Dots) | 344*172 | 256*128 | 208*104 | 172*86 | 160*80 | 128*64 | 104*52 | 80*40 |
| Module Weight (Kg) | 0.54 | 0.58 | 0.44 | 0.37 | 0.37 | 0.37 | 0.35 | 0.35 |
| Moudle (W*H) | 2*3 | |||||||
| Cabinet Size (mm) | 640*480 | |||||||
| Cabinet Frame Material | Aluminium Alloy | |||||||
| Cabinet Resolution (Dots) | 688*516 | 512*384 | 416*312 | 344*258 | 320*240 | 256*192 | 208*156 | 160*120 |
| Cabinet Weight (Kg) | 7.8 | 8.04 | 7.2 | 6.78 | 6.78 | 6.78 | 6.66 | 6.66 |
| Adapter Board Configuration | Hub320 | Hub75 Interface | ||||||
| Using Environment | Indoor | |||||||
| Warranty | 1 year | |||||||
