QM Series

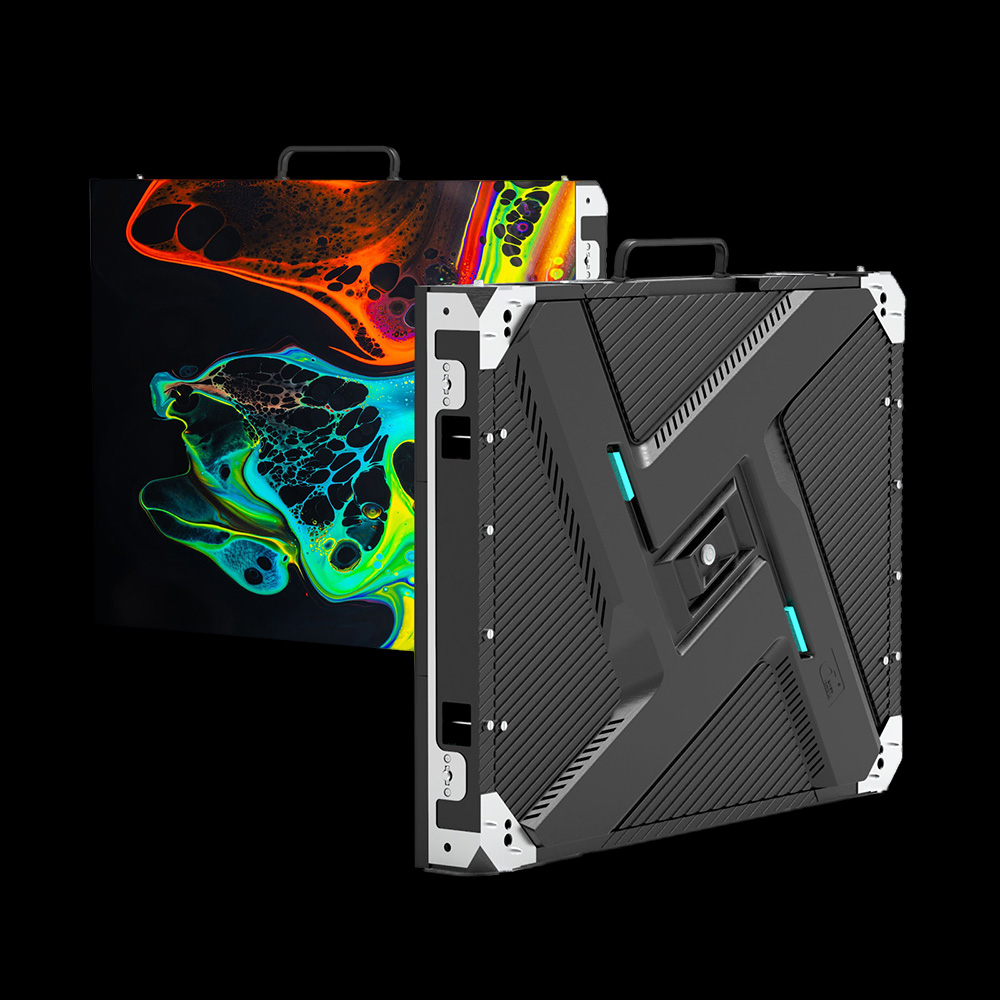

QM Series Cabinet

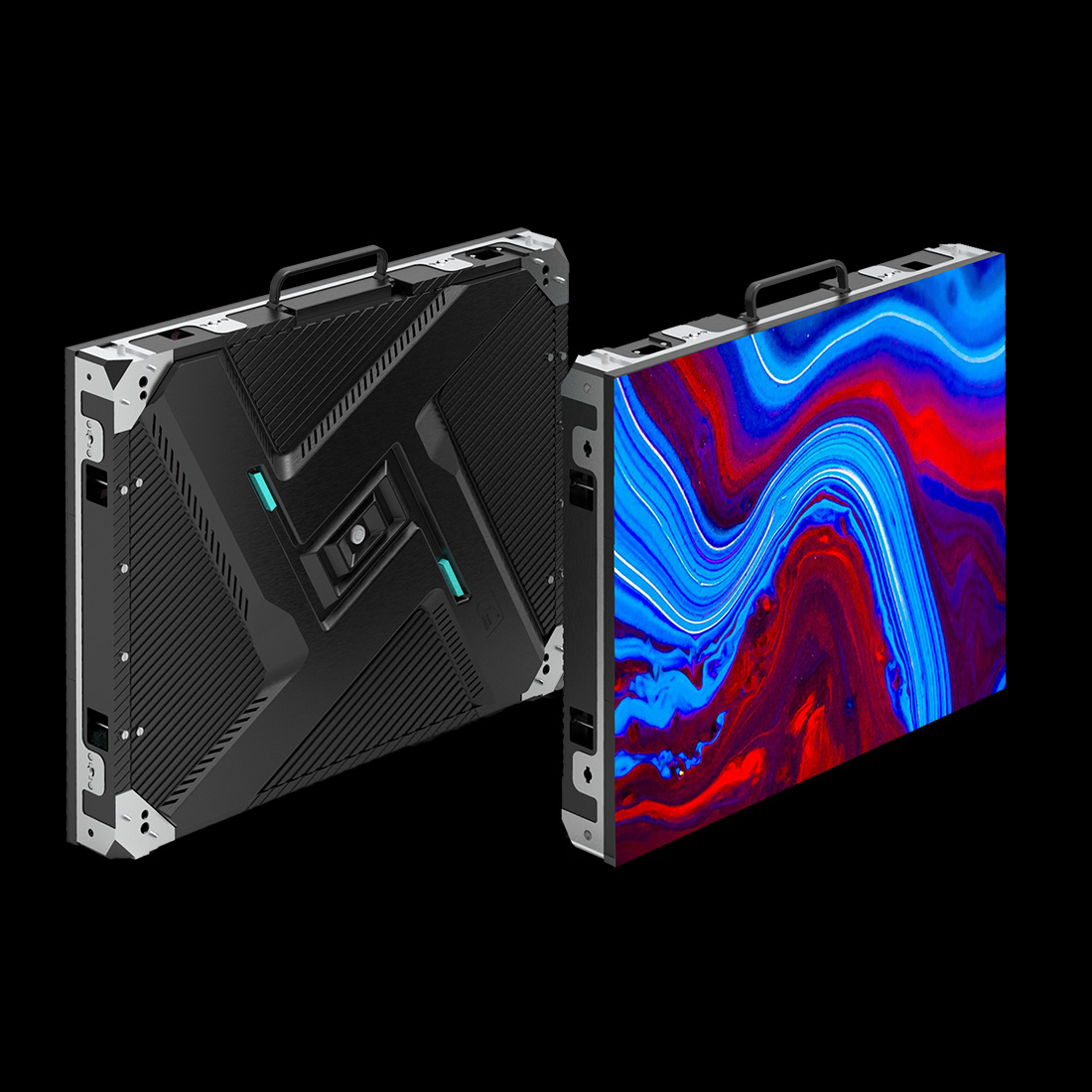

Strong Aluminum Body
The ultimate choice for video walls
Featuring integrated handles for simplified installation
Easy front maintenance
Magnetically-attached modules
Integrated system
modules, receiver cards, and power supply integrated
Ready for immediate deployment

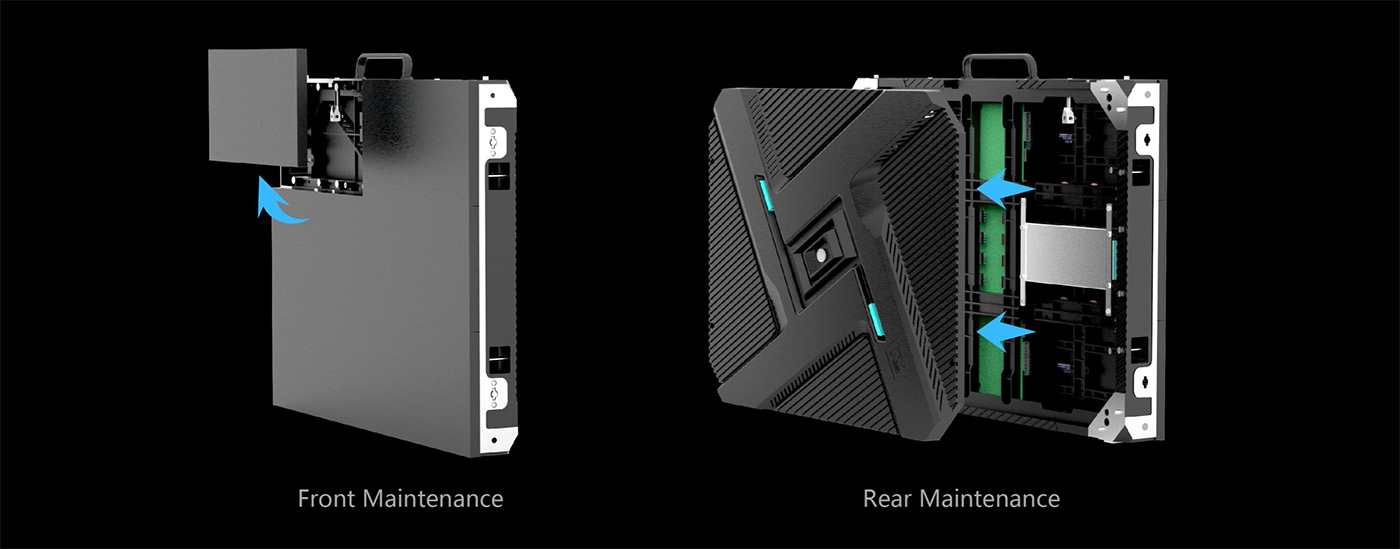

Easy Maintenance
Enabling front and rear maintenance

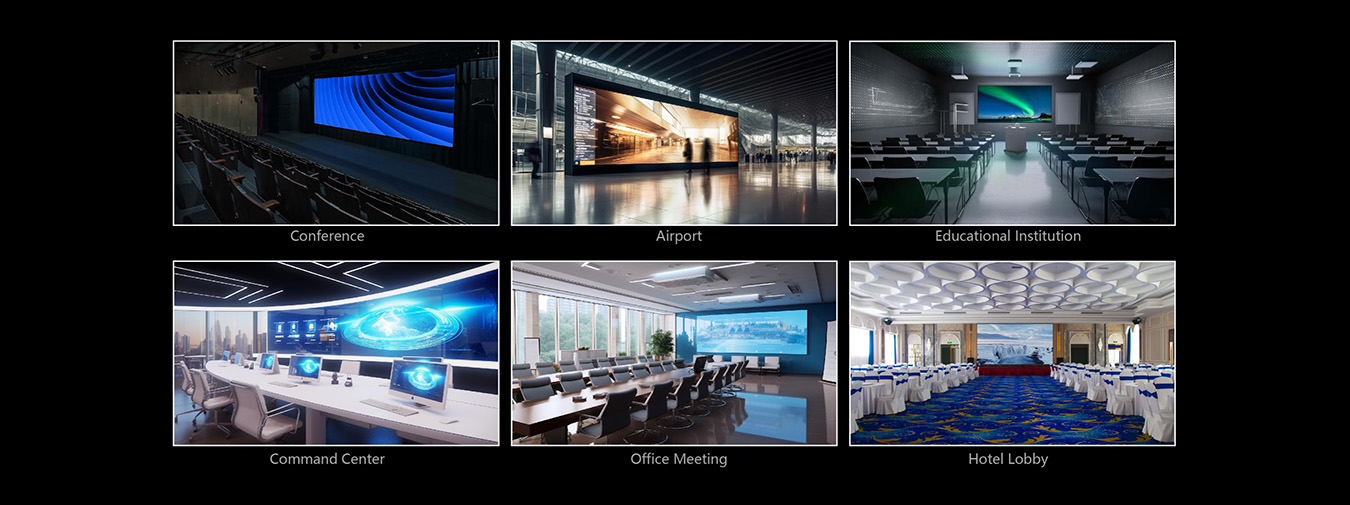

Application
The ultimate choice for indoor fixed Video Walls and Media Advertisement
Parameters
| Items | QM-Pro-0.9 | QM-Pro-1.2 | QM-Pro-1.5 | QM-Pro-1.8 | QM-Pro-2.0 | QM-Pro-2.5 |
|---|---|---|---|---|---|---|
| Match Pixel Pitch Module Size (mm) | 0.9 | 1.2 | 1.5 | 1.8 | 2.0 | 2.5 |
| Scan | 1/45 | 1/32 | 1/26 | 1/43 | 1/40 | 1/32 |
| Module Resolution (Dots) | 344×172 | 256×128 | 208×104 | 172×86 | 160×80 | 128×64 |
| Module Weight (Kg) | 0.54 | 0.58 | 0.44 | 0.37 | 0.37 | 0.37 |
| Cabinet Size (mm) | 640×480 | 640×480 | 640×480 | 640×480 | 640×480 | 640×480 |
| Cabinet Frame Material | Aluminium Alloy | Aluminium Alloy | Aluminium Alloy | Aluminium Alloy | Aluminium Alloy | Aluminium Alloy |
| Cabinet Resolution (Dots) | 688×516 | 512×384 | 416×312 | 344×258 | 320×240 | 256×192 |
| Cabinet Weight (Kg) | 7.80 | 8.04 | 7.20 | 6.78 | 6.78 | 6.78 |
| Adapter Board Configuration | Hub320 | Hub320 | Hub75 Interface | Hub75 Interface | Hub75 Interface | Hub75 Interface |
| Using Environment | Indoor | Indoor | Indoor | Indoor | Indoor | Indoor |
| Warranty | 1 year | 1 year | 1 year | 1 year | 1 year | 1 year |
