Description

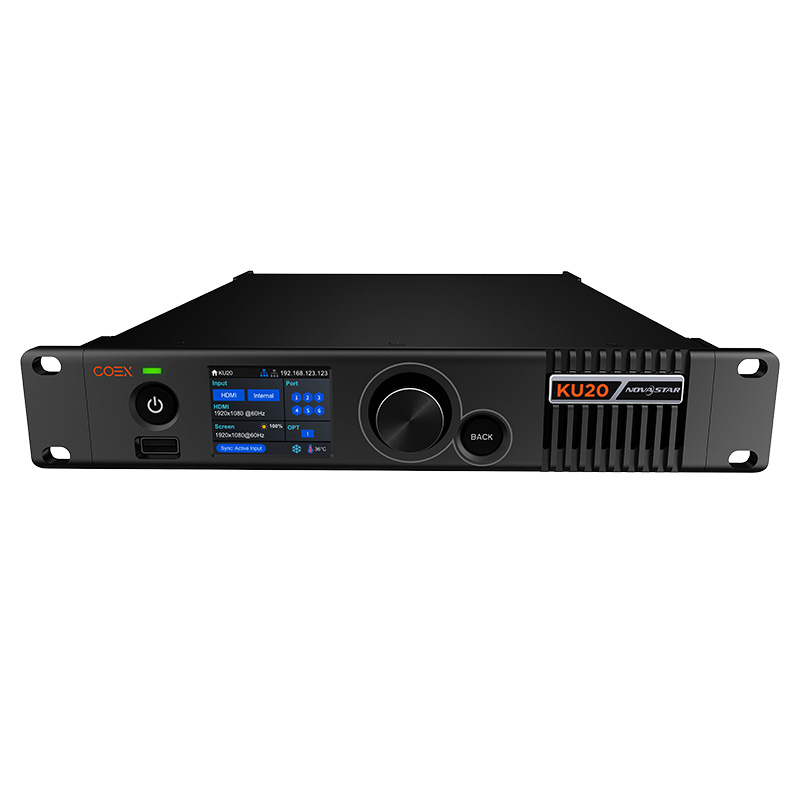

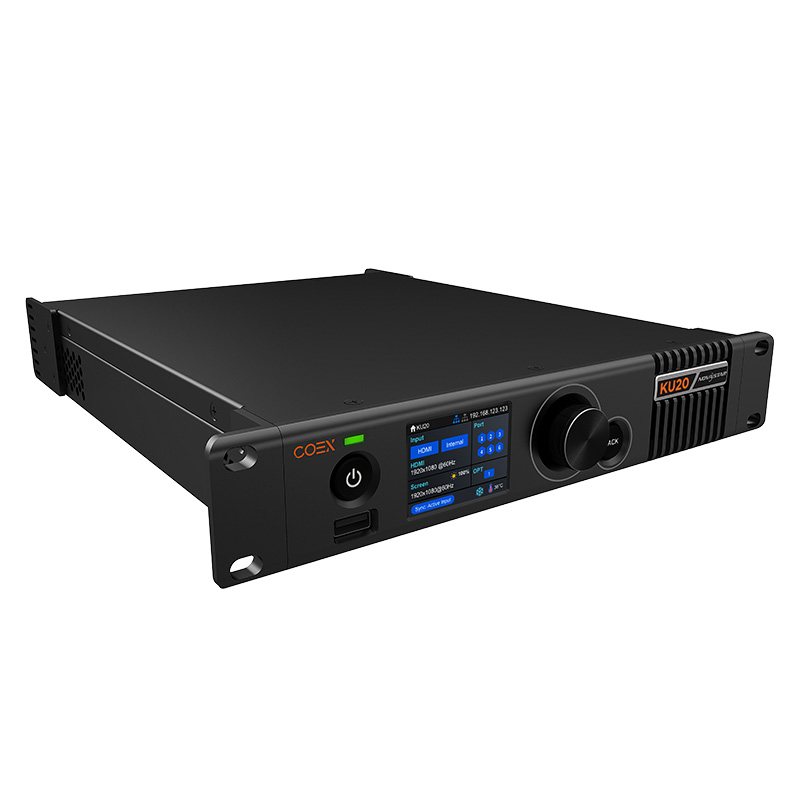

NovaStar KU20



The KU20 is NovaStar’s latest addition to the COEX series. The LED controller is characterized by its small size and can therefore be easily installed in 19″ racks.

In conjunction with the new VMP software (Vision Management Platform) from NovaStar, the user is offered simple operation with extensive functions.

Hardware features:



Inputs:

• 1x HDMI 1.3 (max. 1920×1200@60Hz; min. 800×600@60Hz)
  • Custom EDIDs: max. width: 3840 (3840×600@60Hz); max. height: 2560 (800×2560@60Hz)

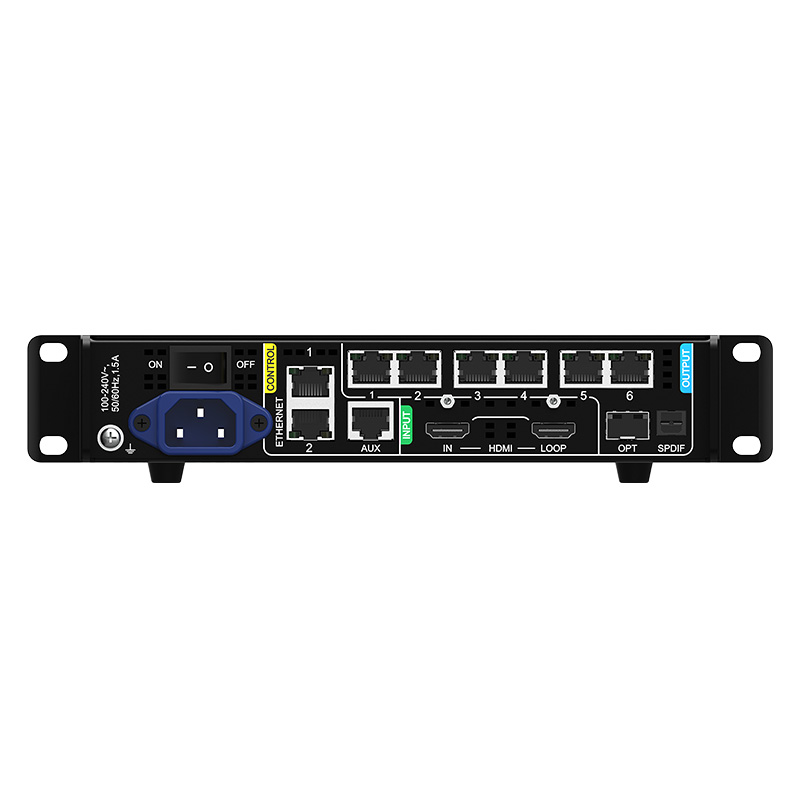

Outputs:

• 6x LED-Out (RJ45):
  • 8Bit@60Hz: 650,000 pixels
  • 10Bit@60Hz: 325,000 pixels (only in conjunction with A10s Pro Receiving card)
• 1x HDMI 1.3 loop
• 1x OPT-Out (10G)
• 1x SPDIF (reserved)

Further features:

• Grayscale calibration
• Pixel level brightness & chroma calibration
• Low latency
• Integrated network switch for cascading multiple devices

general specifications:

• Supply voltage: 100-240V~, 50/60Hz
• Dimensions: 254.3 x 50.6 x 290.0 mm (WxDxH)
• Power consumption: 25Watt
• Weight: 2,1kg
