Description

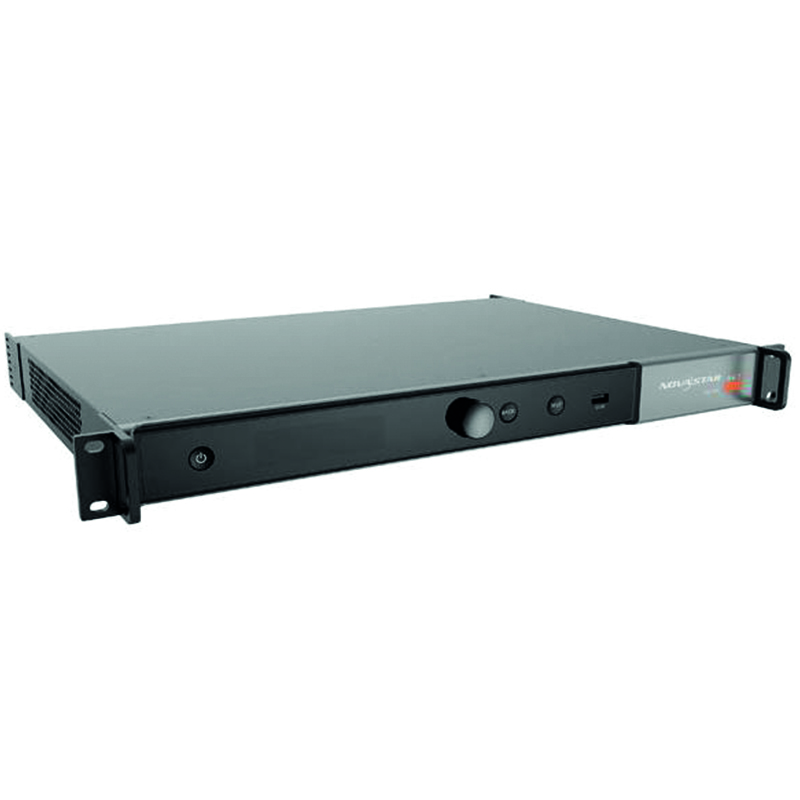

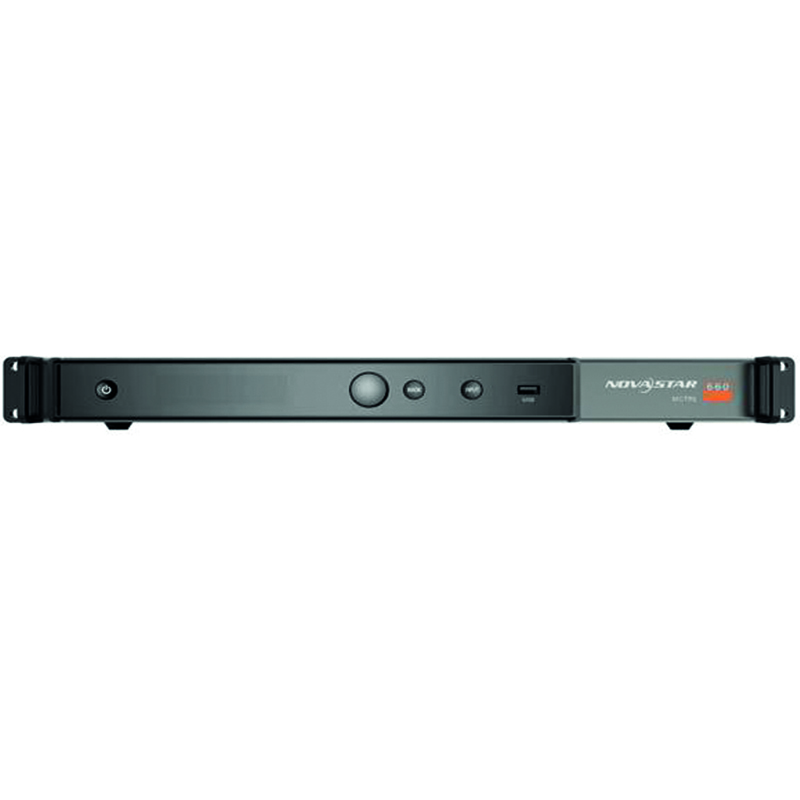

NovaStar MCTRL660 Pro

The MCTRL660 Pro is a professional low-latency LED controller. A single unit can process a resolution of up to 1920×1200@60Hz. The MCTRL660 Pro is equipped with numerous market-leading technologies. With the various video inputs such as HDMI, DVI, 3G-SDI and six Gigabit Ethernet and two 10G optical outputs, you can configure particularly large displays with excess width or height.

Hardware features

Inputs:

• 1x HDMI (In/Loop): 8Bit: 1920×1200@60Hz; 10/12Bit: 1920×1080@60Hz
• 1x 3G-SDI (In/Loop)
• 1x single-link DVI

Outputs:

• 6x LED-Out (RJ45)
• 2x 10G OPT-Out

Further features:

• Integrated display
• Low latency: less than 1ms (if image is created at start position 0)
• Various operating modes: Controller can be used as a sending card or as a fiber optic module
• Cascading via USB
• Control via USB or LAN (incl. web interface)
• 8/10/12-bit color depth
• GENLOCK In/Loop

general specifications:

• Supply voltage: AC-100-240V, 50/60HZ
• Power consumption: 20 watts
• Dimensions: 482.6 x 349 x 50.7 mm (WxDxH)
• Weight: 4.6kg
