Description

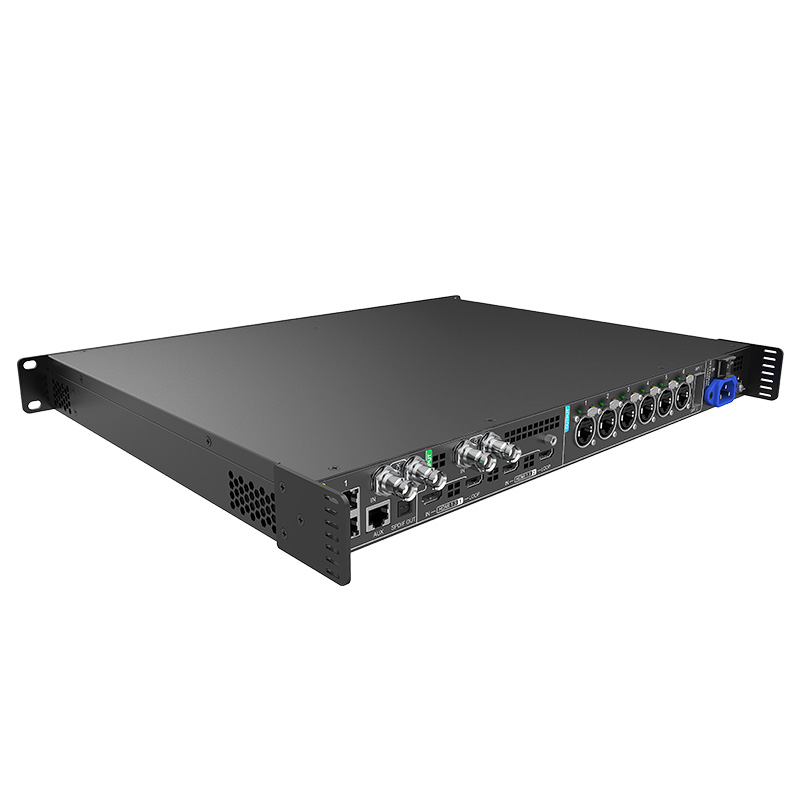

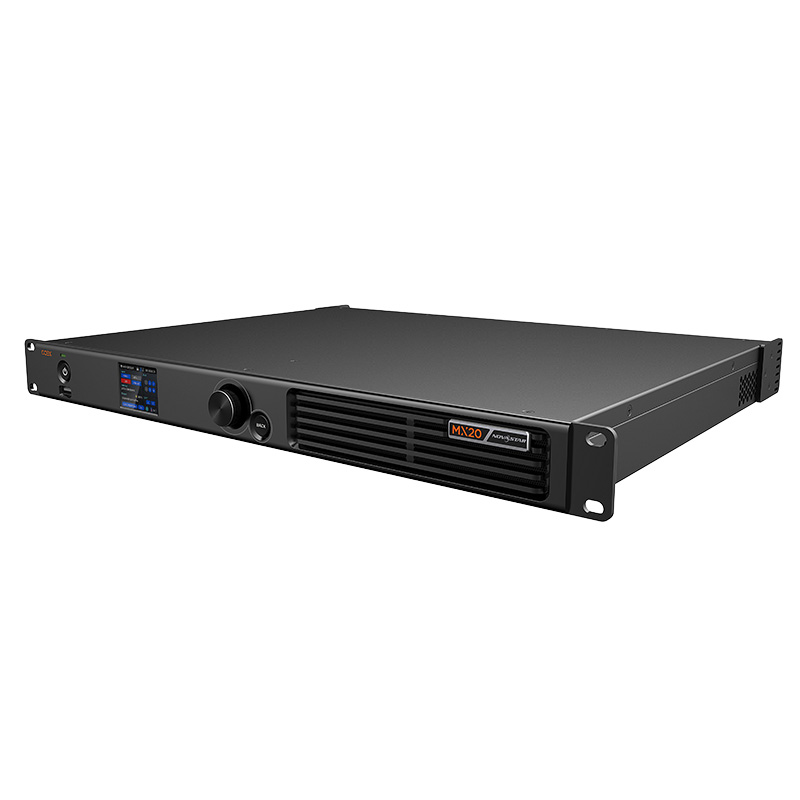

NovaStar MX20



The MX20 is part of the COEX series from NovaStar. This controller integrates video processing and controlling in one device.

In conjunction with the new VMP software (Vision Management Platform) from NovaStar, the user is offered simple operation with extensive functions.

Hardware features:



Inputs:

• 2x HDMI 1.3 (max. 1920×1200@60Hz; min. 800×600@60Hz)
  • Custom EDID’s: max. width: 3840 (3840×600@60Hz); max. height: 2560 (800×2560@60Hz
• 1x 3G-SDI
  • Supports ST-424(3G), ST-292(HD) & ST-259(SD) video inputs

Outputs:

• 6x LED-Out (RJ45):
  • 8Bit@60Hz: 659,000 pixels
  • 10Bit@60Hz: 494,000 pixels
• 2x HDMI 1.3 loop
• 1x 3G-SDI loop
• 2x OPT-Out (10G)
• 1x SPDIF (reserved)

Further features:

• GENLOCK
• 3x layer
• 14Ch Color Correction
• Full Grayscale Calbration
• Low latency
• Integrated network switch for cascading multiple devices

general specifications:

• Supply voltage: 100-240V~, 50/60Hz
• Dimensions: 482.6 x 49.9 x 384.0 mm (WxDxH)
• Weight: 4.5
