Description

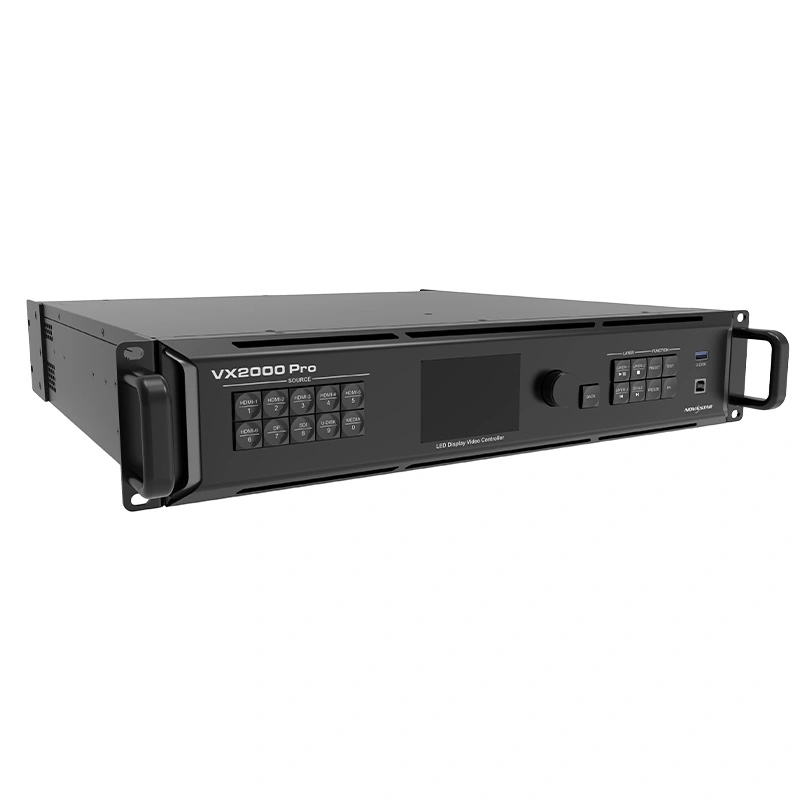

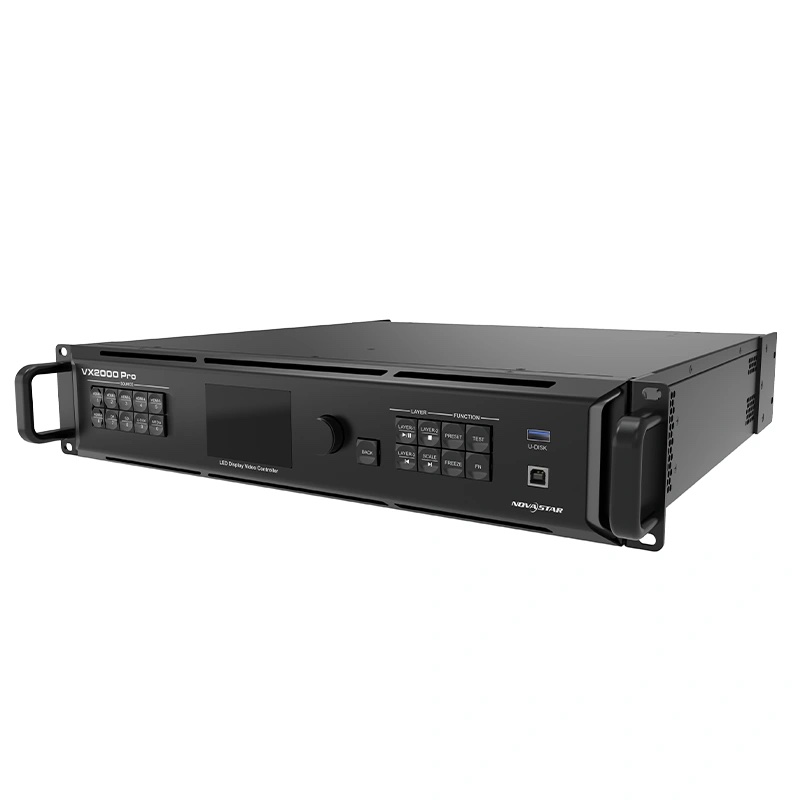

NovaStar VX2000 Pro



The VX2000 Pro is an all-in-one controller that combines video processing and video controlling in a single device. Equipped with 20 Ethernet ports, it supports three operating modes:

Video controller, fiber optic converter and ByPass mode

Hardware features:



Inputs:

• 1x DP1.2 (max. resolution: 4096×2160@60Hz)
• 2x HDMI2.0 (max. resolution 4096×2160@60Hz)
• 4x HDMI1.3(max. resolution 1920×1080@60Hz)
• 1x 12G-SDI (max. resolution4096x2160@60Hz)

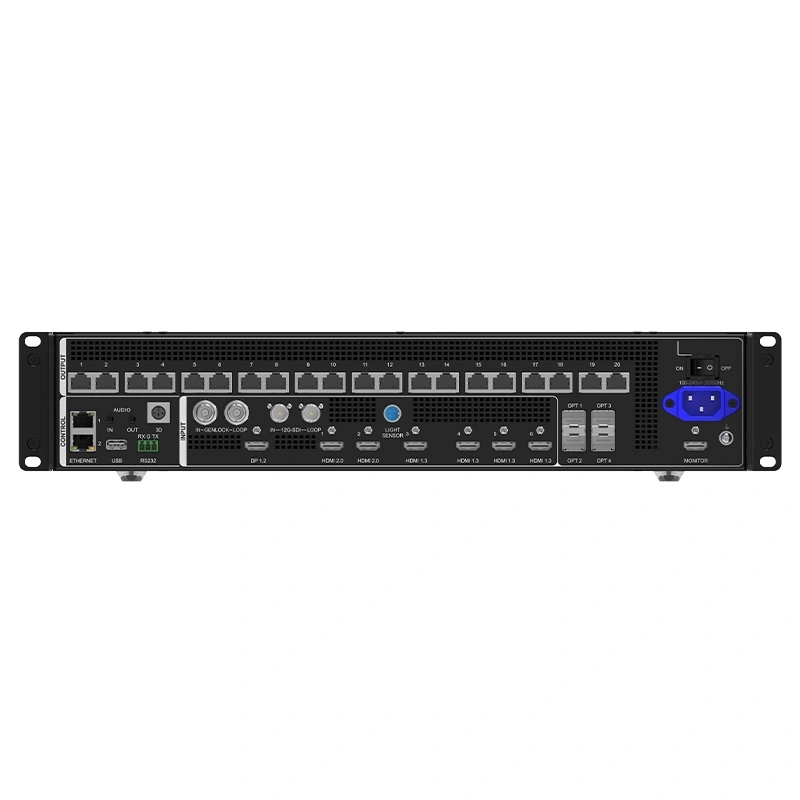

Outputs:

• 20x LED-Out (RJ45)
• 4x OPT-Out (10G)
• 1x HDMI1.3 (1920×1080@60Hz)

Further features:

• 3D connector (for 3D emitters)
• Genlock
• Supports up to 12 layers (2Kx1K)
• Memory for 256 presets
• Light sensor connector

general specifications:

• Supply voltage: AC 100-240V, 50/60HZ
• Dimensions: 482.6 x 409.0 x 94.9 mm (WxDxH)
• Power consumption: 282 watts
• Weight: 7kg
